Survey and Design

Page 8 - C

Survey

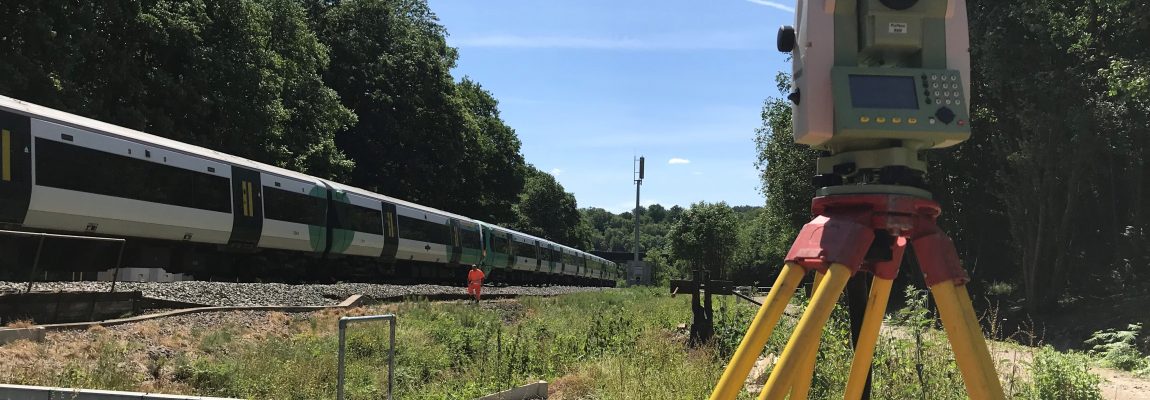

Pro Rail Services topographical team use the latest GPS and Total Station equipment to gather data for producing detailed plans and models. Our survey capabilities include:

  • Topographical survey
  • On and off-track drainage mapping
  • Catchpits, manholes, sewers and other assets surveys
  • Contours and watercourse survey
  • Detailed building survey with sections and elevations
  • Pipe, utility and buried services survey
  • CRT track, land and slope monitoring for landslips and movements
  • Setting out and levelling As-built and as-dug survey CAD drawings and reports

CCTV Survey

Pro Rail Services provides CCTV inspection of on/off track drainage such as:

  • Culvert and sewer inspections
  • High pressure jetting works
  • Drainage condition survey Identifying blockages and defects
  • CCTV video footage
  • Technical reports and recommendations

Design

Pro Rail Services draw upon a broad range of technical skills and experience in infrastructure engineering to deliver rail specific Civil and Structural designs, freeing up your resources to continue to perform their day-to-day activities. Our design capabilities include:

  • Civil and Geotechnical design Railway drainage design
  • Hydraulic infrastructure design Temporary works design
  • Level crossing design
  • Compound design
  • Plain line design
  • Railway assurance capability – CEM/CRE
Design

Cheesewedge Crane Lorry
